Functional Near Infrared Spectroscopy (fNIRS): List of manufactures

15 min read

Map: List of manufactures (click to view interactive map)

Contents

CompanyProducts
ArtinisBrite, OxyMon, OctaMon, PortaMon, PortaLite
BIOPACfNIR 100, fNIR2000M Series

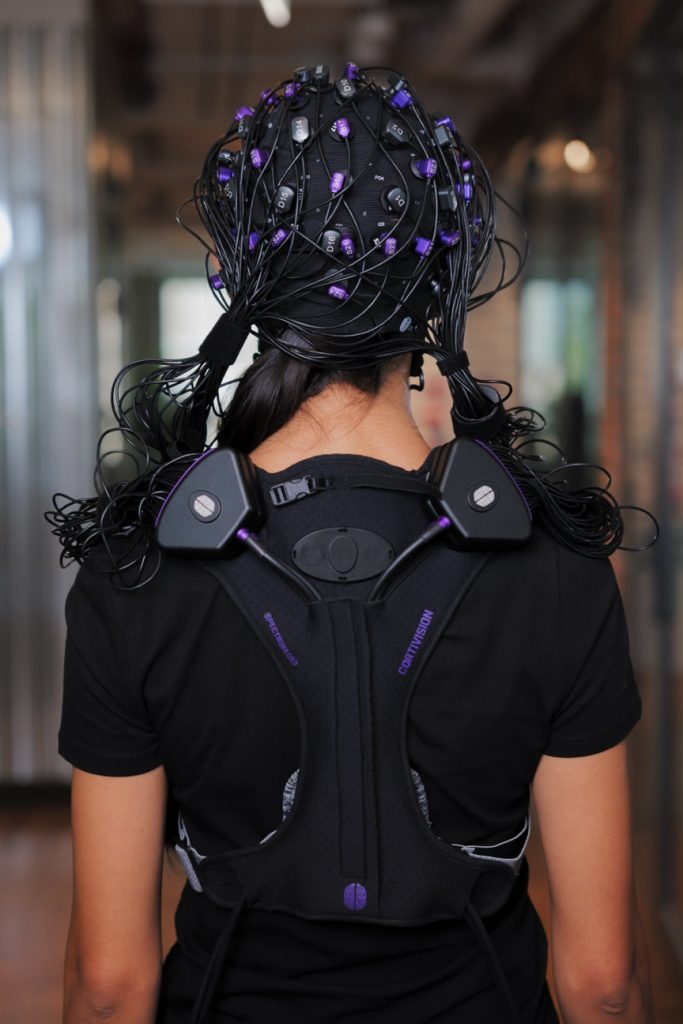

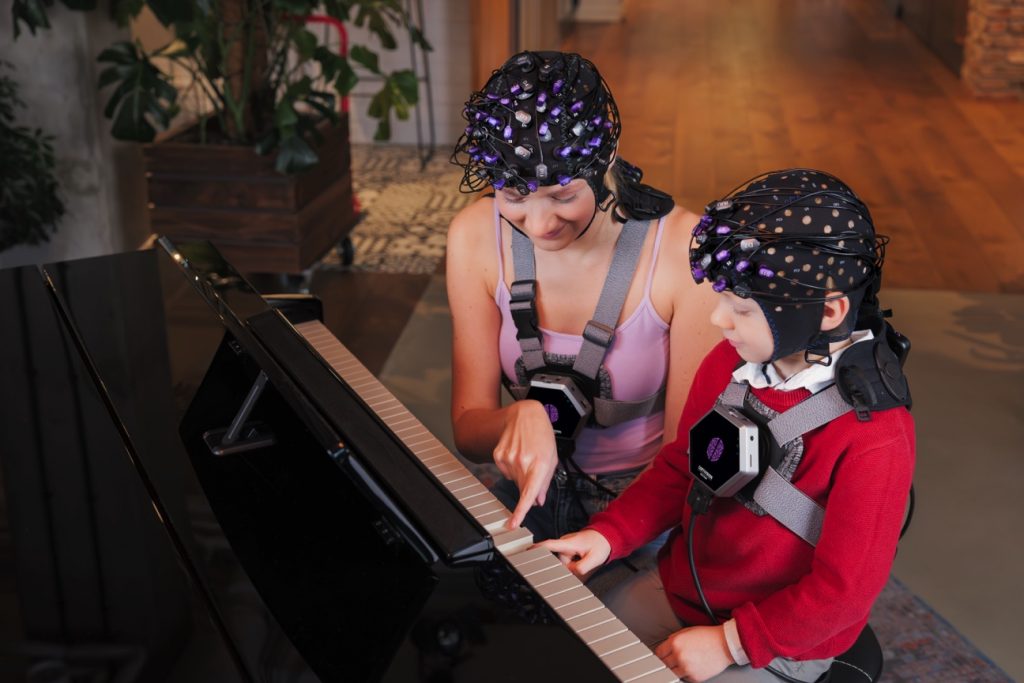

CORTIVISIONPHOTONCAP
Huichuang MedicalNirScan-900X, NirSmartⅡ- Pro
GOWERLABSNTS fNIRS system, LUMO
HAMAMATSUNIRO-200NX
HITACHIETG-4100, ETG-4000, ETG-7100, WOT-100
ISSimagentMetaOxOxiplexTS, OxiplexTS200™
NIRXNIRScout, NIRSport 2
OBELABNIRSIT, NIRSIT ON
Rogue ResearchBrainsight NIRS
SeenelMedelopt
SHIMADZULABNIRS, LIGHTNIRS
Soterix medical NIRSIT
SpectratechOEG-17H
TechEnCW6 System
心灵方舟BrainScan N3001

Artinis

Company Logo
NameArtinis Medical Systems
URLhttps://www.artinis.com/
ContactAddress: Artinis Medical Systems, Einsteinweg 17, 6662 PW
Elst, The Netherlands
Tel: +31481350980
Email: [email protected]
DescriptionArtinis is an innovative Dutch company active in the field of medical research equipment and quality assurance equipment. For over a decade we have been providing user-friendly and high-tech solutions for fNIRS measurements and radiological quality management. We participate in various scientific projects and work closely together with numerous universities around the globe. Besides, we are the world leader in wearable NIRS and gold standard X-ray mammography phantoms, resulting in hundreds of publications. With extensive knowledge of the field, we develop top-quality products and go above and beyond to support you. At Artinis we make optical imaging easy.

Brite

Product NameBrite (brain)
URLhttps://www.artinis.com/brite
source number10 or 11 light emitting diodes
source typesLED
detector numbers7x or 8x photodiodes with ambient light protection
detector typesphotodiodes
max # of channels (list of options)up to 27 channels ( 23 channels to cover the frontal cortex, 2×12 channels on the motor cortex, or 27 channels on the visual cortex.); up to 54 channels with dual Brite.
wavelength760nm & 850 nm
sampling rateup to 100 Hz for Brite 23 and up to 50 Hz for Brite 24
Multi-modal integrationEEG, ECG or EMG
Spectroscopic TechniqueContinuous wave
portable or notYes
Dimensions (WxHxL), Net WeightBattery housing: 75x75x30 mm

OxyMon

Product NameOxyMon(brain & muscle)

URLhttps://www.artinis.com/oxymon
source typesLaser
detector typesphotodiodes
max # of channels (list of options)up to 108 channels
wavelength760nm & 850 nm
sampling rateFast data collection at 50 Hz as standard – up to 250 Hz possible, for any amount of channels
Multi-modal integrationEEG, EMG, fMRI, TDCS and TMS, etc.
Spectroscopic TechniqueContinuous-wave
portable or notNo
Dimensions (WxHxL), Net Weight 37 x 30 x 9 cm;7-8 kg

OctaMon

Product NameOctaMon(PFC) / OctaMon+(anywhere on the head)
URLhttps://www.artinis.com/oxymon
source typesLED
detector typesphotodiodes
max # of channels (list of options)8 channels
wavelength760nm & 850 nm
sampling rate50Hz
Multi-modal integrationEEG, ECG or EMG
Spectroscopic TechniqueContinuous wave
portable or notyes
Dimensions (WxHxL), Net WeightBattery housing: 84 x 54 x 20 mm, wire: 1.3 m headbands available in multiple sizes: XS (OctaMon Mini) 48-50 cm, S 52 cm, M 56 cm, and L 60 cm

PortaMon

Product NamePortaMon(muscle)
URLhttps://www.artinis.com/portamon#portamon-nirs-technique
source typesLED
detector typesPhotodiode with ambient light protection
max # of channels (list of options)1 channel to measure tissue saturation percentage, 3 channels to measure relative concentrations
wavelengthStandard nominal 760 and 850 nm, others possible
sampling rateUp to 10 Hz
Multi-modal integrationEEG, ECG or EMG
Spectroscopic TechniqueContinuous wave
portable or notyes
Dimensions (WxHxL), Net Weight83.8 x 42.9 x 17.2 mm

PortaLite

Product NamePortaLite (brain & muscle)
URLhttps://www.artinis.com/portamon#portamon-nirs-technique
source typesLED
detector typesPhotodiode with ambient light protection
max # of channels (list of options)1 channel to measure tissue saturation
percentage, 3 channels to measure relative
concentrations
wavelengthStandard nominal 760 and 850 nm, others possible
sampling rateUp to 50 Hz
Multi-modal integrationEEG, ECG or EMG
Spectroscopic TechniqueContinuous-wave
portable or notyes
Dimensions (WxHxL), Net WeightBattery housing: 84 x 54 x 20mm, wire: 1.3m,
probe: 58 x 28 x 6mm

BIOPAC

Company Logo
NameBiopac
URLhttps://www.biopac.com/
ContactAddress:42 Aero Camino Goleta, CA 93117
Tel: 805-685-0066
Fax: 805-685-0067
Email: [email protected] International resellers: https://www.biopac.com/international-offices/
DescriptionBIOPAC was founded in 1985 and, with over 30 years of success, is recognized around the world as a premier choice for life science hardware and software. BIOPAC lets you measure physiology anywhere with innovative, compatible solutions that can be used by anyone for meaningful discovery. We make high-quality scientific tools for physiology measurement and interpretation with superior compatibility and world-class customer service and support.

fNIR 100 series

Product NamefNIR 100
URLhttps://www.biopac.com/application/fnir-functional-near-infrared-optical-brain-imaging/advanced-feature/stimulus-presentation-with-fnir/
source number4
source typesLED
detector number10
detector typesPhotodiode
max # of channels (list of options)16-ch adult sensor; 2-ch pediatric sensor
wavelength730nm & 850nm
sampling rate2Hz
Multi-modal integrationeye tracking, pupil reflex, respiration and electrodermal activity
Spectroscopic TechniqueContinuous-wave
portable or notno
Dimensions (WxHxL), Net Weight/

fNIR 2000M Series

Product NamefNIR 2000M Series
URLhttps://www.biopac.com/product/fnir-2000m-systems/?attribute_pa_system=fnir2000m-cpt-sensors#product-tabs
source numberMax sources: 4
source typesLED
detector numberMax detectors: 12
detector typesSilicon photodiode with integrated transimpedance preamp
max # of channels (list of options)up to 54 channels
wavelength730nm & 850nm
sampling rateup to 10 Hz
Multi-modal integrationECG, EEG, RESP, BP, EDA, etc.
Spectroscopic TechniqueContinuous-wave
portable or notyes
Dimensions (WxHxL), Net Weight96 mm x 32 mm x 85 mm

Huichuang medical

Company Logo
NameDanyang Huichuang Medical Equipment Co, Ltd.
URLhttp://www.hcmedx.cn/
ContactProduction Base: Phase I of Danyang High tech Entrepreneurship Park, South Third Ring Road, Danyang City, Zhenjiang City, Jiangsu Province
Operation Center: No. 66 Zhongguancun East Road, Haidian District, Beijing
Sales hotline: 186 0127 7095
Contact number: 010-82169780
Email: [email protected]
DescriptionHuichuang Medical (Danyang Huichuang Medical Equipment Co, Ltd.) is an innovative Chinese high-tech company, based on the scientific research achievements of Beihang University.
The company has an extraordinary research and development team, comprised of master and doctoral graduates from California Institute of Technology, Tsinghua University, Chinese Academy of Sciences, Beihang University and other top-notch universities both in China and abroad. Huichuang Medical independently developed and launched the first fNIRS equipment with over 157 channels , as well as the first portable fNIRS equipment with over 100 channels .
The company’s products are being used in more than 800 hospitals and scientific research units, such as Tsinghua University, Hong Kong Polytechnic University, Beijing Normal University, 301 Hospital, Huashan Hospital, Huaxi Hospital, Xuanwu Hospital, etc., to carry out both clinical examinations and scientific research. So far, Huichuang Medical has supported users to publish more than 230 SCI papers in top journals such as Nature Human Behaviour, and made an important contribution to the development of Chinese brain science programmes.

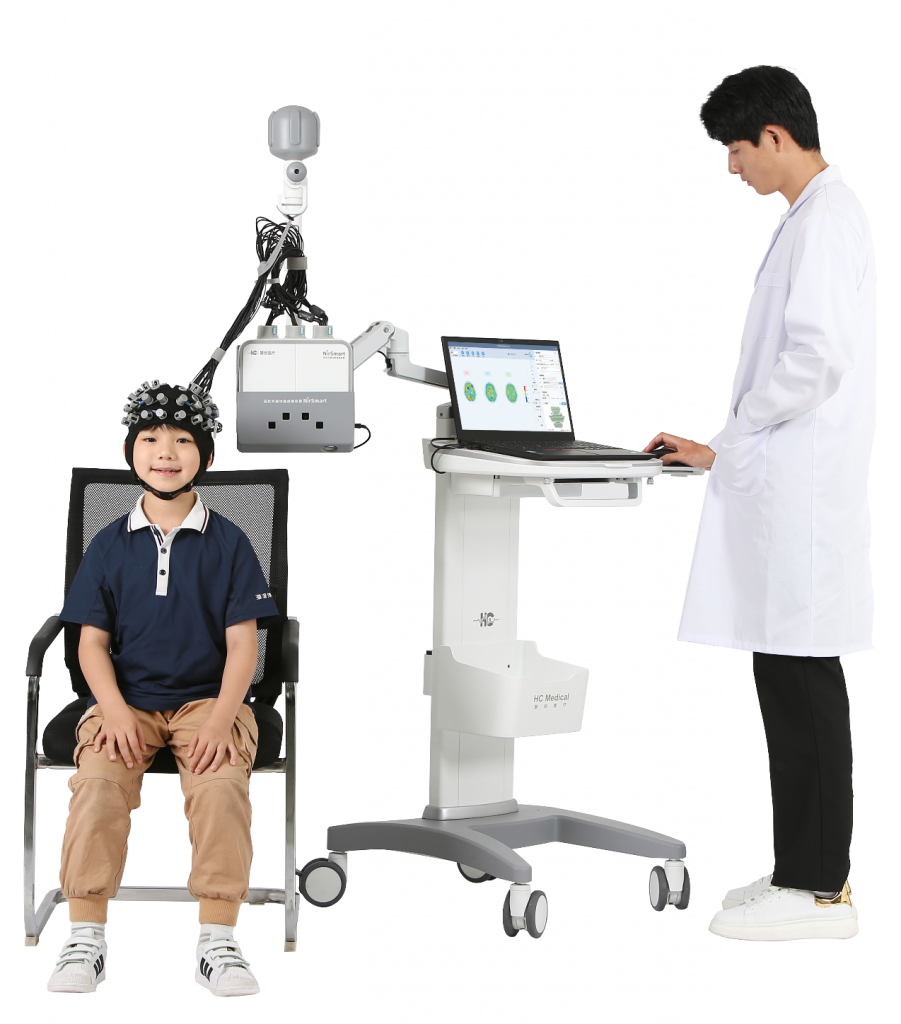

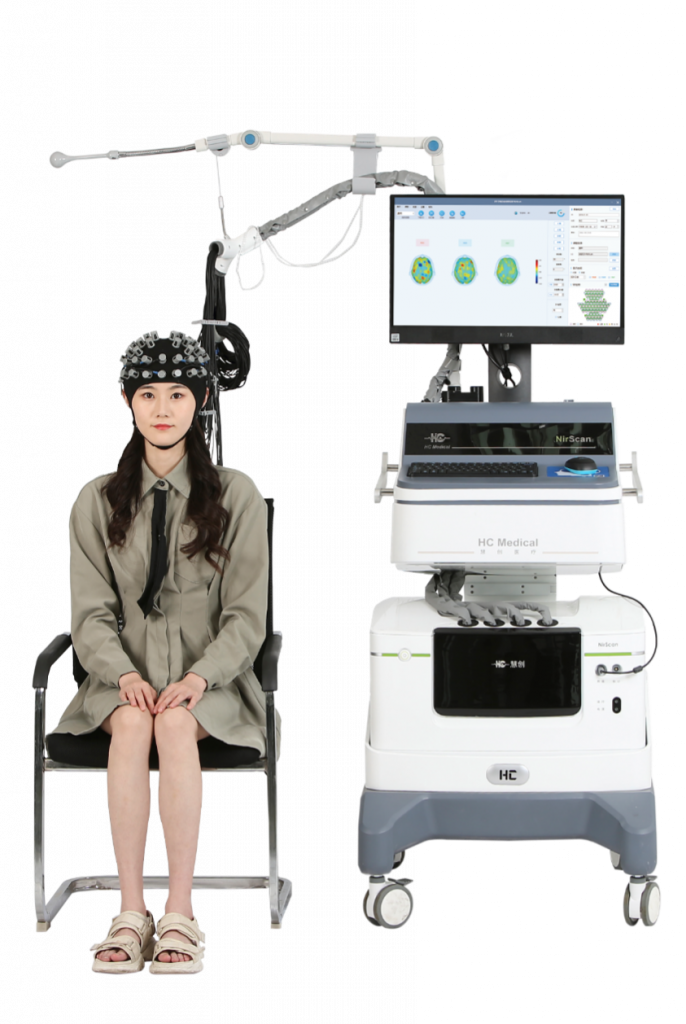

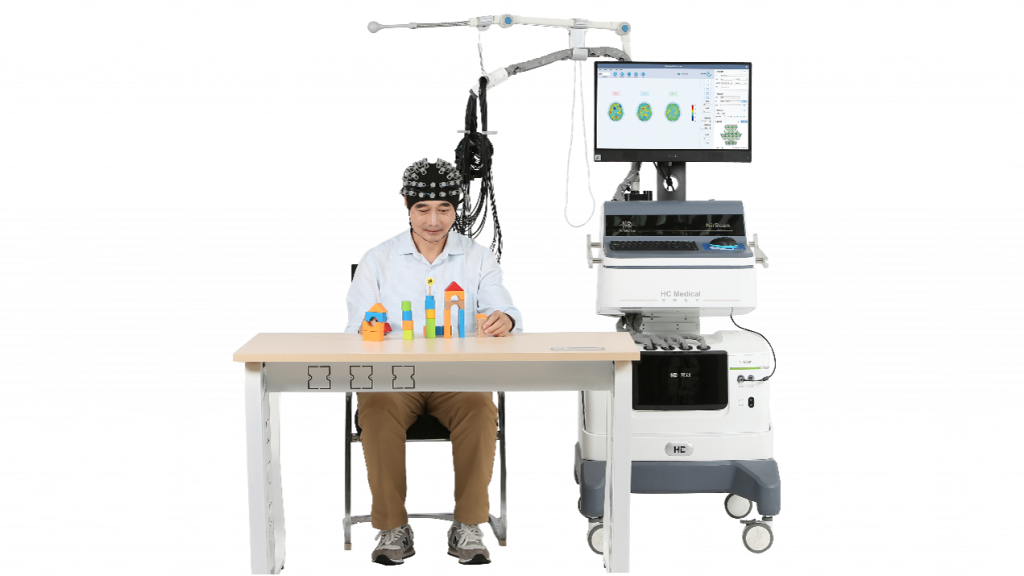

NirScan-900X

Product NameNirScan-900X
URLhttp://hcmedx.cn/en/Content/2292290.html
source number48
source typeLED
detector number42
Max # of channels (list of options)157 channels
wavelength730nm, 808nm, 850nm
sampling rate≥11Hz
Multi-modal integrationfMRI、EEG、TMS、VR
Spectroscopic TechniqueUltramicroscopic Detection Technology
portable or notno
Dimensions (WxHxL), Net Weight/

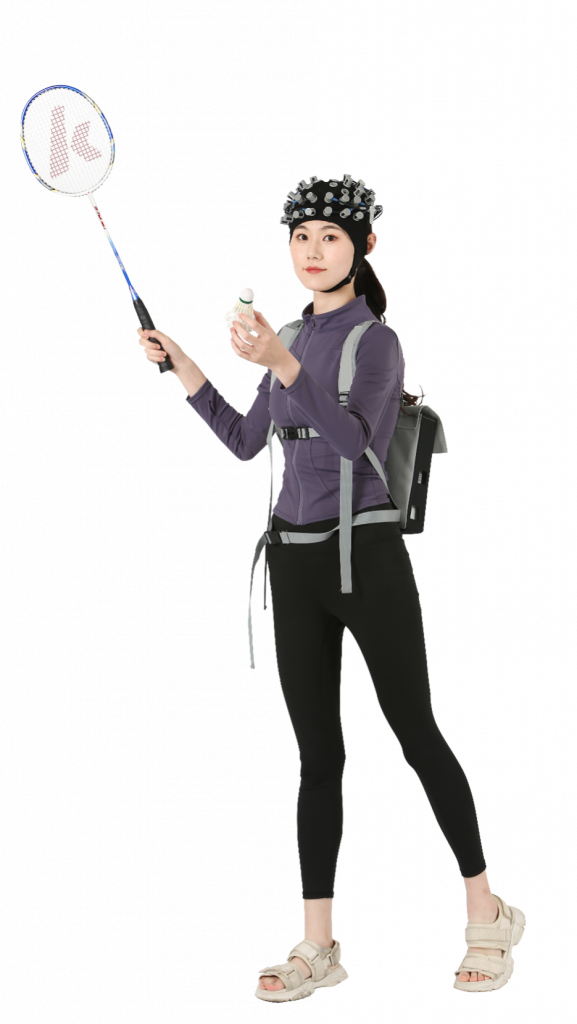

NirSmartⅡ-Pro

Product NameNirSmartⅡ-Pro
URLhttp://hcmedx.cn/en/Content/2292281.html
detector typesAvalanche photo diode
source number48
source typesLED
detector number32
detector typesAvalanche photo diode
max # of channels (list of options)130 channnels
wavelength730nm、850nm
sampling rate≥11Hz
Multi-modal integrationfMRI、EEG、TMS
Spectroscopic TechniqueUltramicroscopic light detection technology
portable or notyes
Dimensions (WxHxL), Net Weight/

GOWERLABS

Company Logo
NameUCL Gowerlabs
URLhttps://www.gowerlabs.co.uk/
ContactAddress: Gowerlabs is based at University College London
Tel: +442076790450
Email: [email protected]
DescriptionGowerlabs focuses on high quality engineering for the research and healthcare communities. All of our technologies are designed and developed in close collaboration with University College London. Together, our team of engineers and physicists brings over 50 years of experience in research and development.

NTS fNIRS system

Product NameNTS fNIRS system
URLhttps://www.gowerlabs.co.uk/nts-main
source numbermini system: 6 sources
half system: 8 sources
full system: 16 sources
source typeslaser
detector numbermini system: 4 detectors
half system: 8 detectors
full system: 16 detectors
detector typesAvalanche photo diode
wavelength780nm & 850nm
sampling rate10Hz
Multi-modal integrationEEG
Spectroscopic TechniqueContinuous-wave
portable or notyes
Dimensions (WxHxL), Net Weight/

LUMO

Product NameLUMO
URLhttps://www.gowerlabs.co.uk/lumo
source numberEach tile has 3 dual-wavelength sources and 4 detectors
detector numberEach tile has 3 dual-wavelength sources and 4 detectors
detector typesAvalanche photo diodes
max # of channels (list of options)up to 48 channels
Multi-modal integration/
Spectroscopic TechniqueContinuous-wave
portable or notyes
Weighteach tile – less than 6 g

HAMAMATSU

Company Logo
NameHAMAMATSU
URLhttps://www.shimadzu.com/an/index.html
Contact812 Joko-cho, Higashi-ku, Hamamatsu City, 431-3196, Japan Telephone:(81)53-431-0124;
Fax: (81)53-433-8031
Email: [email protected]
DescriptionHamamatsu Photonics is a Japanese manufacturer of optical sensors (including photomultiplier tubes), electric light sources, and other optical devices and their applied instruments for scientific, technical and medical use.

Hamamatsu Photonics’ photomultiplier tubes (PMTs) were designed specifically for the Super-Kamiokande neutrino detector facility at the University of Tokyo where 2015 Nobel Prize Laureate Takaaki Kajita conducted his research. In using products contributed by Hamamatsu Photonics, “Kajita was able to prove that neutrinos do in fact have mass — a major shift in our fundamental understanding of how the universe works,” said Tom Baer, chair of the Photonics Industry Neuroscience Group of the National Photonics Initiative. “This win is a tremendous accomplishment for Kajita and Hamamatsu Photonics.” The sensors made by the company also helped confirm the existence of the Higgs boson in research that led to the 2013 Nobel Physics prize.

NIRO-200NX

Product NameNIRO-200NX
URLhttps://www.hamamatsu.com/us/en/product/type/C10448/index.html
source number2
source typesLED
detector number2
detector typesPhotodiode
max # of channels (list of options)2
Wavelength735 nm, 810 nm, 850 nm
Multi-modal integration/
Spectroscopic TechniqueContinuous-wave
portable or notno
Dimensions (WxHxL), Net WeightDisplay unit: approx. 264 mm(W)×279 mm(H)×190 mm(D)/approx. 6 kg
AMP unit: 91 mm(W)×55 mm(H)×156 mm(D)/approx. 0.7 kg

HITACHI

Company Logo
NameHitachi High-Technologies Corporation
URLhttp://www.hitachi-hightech.com/global/
ContactAddress: 24-14, Nishi-shimbashi 1-chome, Minato-ku, Tokyo 105-8717, Japan
Tel: +81-3-3504-7111
Fax: +81-3-3504-7123
DescriptionThe Hitachi High-Tech Group has developed a global business around the four segments of Science & Medical Systems, Electronic Device Systems, Industrial Systems and Advanced Industrial Products with the corporate vision of “To consistently aim to be Global Top in high-tech solutions” and the mission of “To Turn our Customers into Fast-moving, Cutting-edge Businesses”.
https://www.hitachi-hightech.com/global/about/corporate/corp_archives/corp_ref/corp_video/ (see details)

ETG-4100

Product NameETG-4100
URLhttps://www.usa.philips.com/healthcare/resources/landing/fnirs
source number18
source typeslaser
detector numbers16
detector typesAvalanche Photodiode
max # of channels (list of options)up to 52 channels; 3*5; 4*4; 3*3 (a set of two ); 3*11; 2*11
wavelength695nm & 830nm
sampling rate10Hz
Multi-modal integration/
Spectroscopic TechniqueContinuous wave
portable or notno
Dimensions (WxHxL), Net Weight582(W)×933(D)×1,430(H)mm; 165kg

ETG-4000

Product NameETG-4000
URL/
source number18
source typeslaser
detector numbers16
detector typesAvalanche Photodiode
max # of channels (list of options)up to 52 channels; 3*5; 4*4; 3*3 (a set of two ); 3*11
wavelength695nm & 830nm
sampling rate10Hz
Multi-modal integration/
Spectroscopic TechniqueContinuous wave
portable or notno
Dimensions (WxHxL), Net Weight560(W)×933(D)×1,470(H)mm; 130kg

ETG-7100

Product NameETG-7100
URL/
source typeslaser
detector typesAvalanche Photodiode
max # of channels (list of options)up to 120 channels
wavelength695nm & 830nm
sampling rate10Hz
Multi-modal integration/
Spectroscopic TechniqueContinuous wave
portable or notno

WOT-100

Product NameWOT-100
URL/
source number8
source typeslaser
detector numbers8
detector typesAvalanche Photodiode
max # of channels (list of options)16
wavelength705nm & 830nm
sampling rate5Hz
Multi-modal integration/
Spectroscopic TechniqueContinuous-wave
portable or notYes
Dimensions (WxHxL), Net WeightHeadset:approx. 650[g], W:260/D:280/H:92[mm]
Signal Processing Unit: approx 650 [g], W:150/D:115/H:62[mm]

ISS

Company Logo
NameISS
URLhttps://iss.com/index.html
ContactUnited States:
ISS, Inc. 1602 Newton Drive, Champaign, IL 61822
phone:1-217-359-8681
Fax: 1-217-359-7879
Email: [email protected]

Europe:
Innovendia, Bartholomöus-Moser-Weg 4D-88696 Owingen, Germany
Contact: Dr. Michael Steinwand
Tel: 07551-838411
Fax: 07551-838412
Email: [email protected]

Canada:
Blactek Inc. 1222 April Drive Mississauga, ON L5J 3J7
www.blactek.com
Contact: Mike Boehlke
Tel: 647-706-0672
Email: [email protected]
DescriptionSince 1984, ISS has been committed to the development and design of highly sensitive scientific instrumentation for research, clinical and industrial applications. Over the years, our innovations introduced to research-grade fluorescence instrumentation generated a second product line for medical applications.

In 1992, ISS started a project with the research group at the University of Illinois at Urbana-Champaign headed by Prof. Enrico Gratton and aimed at understanding the behavior of fluorophores in scattering and turbid media; the goal was the development of an instrument suitable for the non-invasive measurements of metabolites in the human body.

As a result of this collaboration, ISS introduced a non-invasive Tissue Oximeter for the measurement of the absolute oxygen concentration in tissues, called OxiplexTS. The first prototype of the instrument was completed in 1998; about one hundred units of OxiplexTS have been installed worldwide so far. A second instrument, Imagent, utilized for the mapping of activated brain areas, was added in 2001. Both products have been developed with the generous contribution of The National Institutes of Health through the SBIR program and today they are successfully marketed worldwide by our division ISS Medical, fully dedicated to the development of instrumentation for medical applications.

ISS instruments are installed in universities and corporations worldwide. Our customers include several major universities, corporations, hospitals and research institutions across the globe, including, in the United States, The Mayo Foundation, the VA Administration, The National Institute of Standards and Technology, The National Institutes of Health, Oak Ridge National Laboratories and The National Aeronautics and Space Administration (NASA).

OxiplexTS200™

Product NameOxiplexTS200™
URLhttps://iss.com/biomedical/instruments/oxiplexTS200.html
source number8 laser diodes emitting at 690 nm
8 laser diodes emitting at 830 nm
source typesLaser
detector number/
detector typesPhotomultiplier tubes
Computer-controlled bias voltage (Gain)
Automatic safety shutdown
max # of channels (list of options)2
wavelength690 nm & 830 nm
sampling rate/
Multi-modal integration/
Spectroscopic Technique/
portable or notno
Dimensions (WxHxL), Net Weight 38 x 32 x 20 cm; 11 kg

OxiplexTS

Product NameOxiplexTS
URLhttps://iss.com/biomedical/instruments/oxiplexTS.html
source number8 laser diodes emitting at 690 nm
8 laser diodes emitting at 830 nm
source typesLaser
detector number/
detector typesPhotomultiplier tubes
Computer-controlled bias voltage (Gain)
Automatic safety shutdown
max # of channels (list of options)/
wavelength690 nm & 830 nm
sampling rate /
Multi-modal integration/
Spectroscopic Technique/
portable or notyes
Dimensions (WxHxL), Net Weight 28.9 x 14.6 x 36.2 cm; 5.4 kg

MetaOx

Product NameMetaOx
URLhttps://iss.com/biomedical/instruments/metaox.html
source number/
source typesLaser
detector number/
detector typesNIRS: Qty. 4 PMTs, GaAs; computer-controlled gain
DCS: Qty. 8 APDs; photon counting mode
max # of channels (list of options)/
wavelengthNIRS: 660, 690, 705, 730, 760, 785, 810, 830 nm;
DCS: 850 nm, long coherence length;
sampling rateUp to 50 Hz
Multi-modal integration/
Spectroscopic TechniqueContinuous-wave
portable or notno
Dimensions (WxHxL), Net Weight45 cm x 24 cm x 44 cm;19kg

imagent

Product Nameimagent
URLhttp://iss.com/biomedical/instruments/imagent.html
source numberup to 64
source typeslaser
detector numberup to 32
detector types/
max # of channels (list of options)Up to 512 optical channels
wavelength690 nm & 830 nm
sampling rateUp to 50 Hz
Multi-modal integration/
Spectroscopic Technique/
portable or notno
Dimensions (WxHxL), Net Weight46 cm x 43 cm x 23 cm ;
Main unit — 20 kg

NIRX

Company Logo
NameNIRX
URLhttps://www.nirx.net
ContactNIRx Berlin: NIRx Medizintechnik GmbH, Gustav-Meyer-Allee 25, Building 12, 13355 Berlin, Germany
NIRx New York: NIRx Medical Technologies, LLC, 15 Cherry Lane, Glen Head, NY 11545 U.S.A.
NIRx Los Angeles: NIRx Medical Technologies, LLC Los Angeles, CA 90069 U.S.A.
China’s distributor:Nanjing Jianchuang Technology Co., Ltd
TEL:18301313832 / E-mail:[email protected]
URL:https://www.jc-toptech.com/
DescriptionIn 1988 Prof. Randall L. Barbour & Prof. Ray Aronson, the founders of NIRx, introduced the concept of tomographic imaging (i.e., multi-distance spectroscopic measurements) in dense scattered media based on diffusely scattered light. This approach has since been widely adapted and has served to launch the modern day field of fNIRS tomography.

NIRScout

Product NameNIRScout
URLhttps://nirx.net/nirscout
sources NSC 8 to 16 LED sources
NSX 8 to 64 LED sources- single system
NSX 8 to 128 LED sources – tandem configuration
NSXP 8 to 64 LED sources – single system
NSXP 8 to 128 LED sources – tandem configuration
NSXP 8 to 32 Laser sources – single system
NSXP 8 to 64 Laser sources – tandem configuration
Source Illumination Types Hybrid Choice: LED & Laser Sources
detectorsNSC 4 to 24 detectors
NSX 4 to 32 detectors – single system
NSX 4 to 64 detectors – tandem configuration
NSXP 4 to 32 detectors- single system
NSXP 4 to 64 detectors – tandem configuration
detector typesSilicon Photodiode (active or fiber optic) or Avalanche Photodiode (fiber optic)
Detector Dynamic Range90 dBopt
Detector Sensitivity< 1 pW or APD: 0.5pW
Optode typeSingle-tip, or specialized Dual-tip optodes (faster set-up time and better contact to skin), Blunt-Tip (infant and child applications, better comfort)
max # of channels (list of options)2048 (up to 4096 in tandem config.)
Multi-distance/Short-distance detectorsYes
wavelengthLED: 760nm & 850nm; Laser: 785, 808, 830, & 850nm
sampling rate2.5Hz – 62.5Hz (up to 100hz for NIRScoutX and NIRScoutX+)
3D Depth-discriminationYes
Maximum Functional Resolution7.5mm (with 7.5mm source-detector spacing)
Key Measurement FeaturesTime multiplexing and 10e9 dynamic gain state switching
Hyperscanning ConfigurationUp to 4 separate bi-lateral 16-source/8-detector arrays for 4 subjects
Included Data Acquisition SoftwareNIRStar
Topography SoftwareOpen format: nirsLAB, Homer2, MATLAB, etc.
Trigger/Event ConnectionExtended: 8-bit TTL Input and Output; Standard: 4-bit TTL Input
HeadgearNIRScaps: freely-configurable, measures whole head, fits all age ranges, multi-modal
BCI/NeurofeedbackOptional module for NIRStar
Multi-modal integrationBuilt-in: EEG, tDCS/TES, eye-tracking, motion-tracking
Requiring module: fMRI, MEG, TMS
Spectroscopic Technique, Phase TypeContinuous Wave, Single Phase
Multi-distance/Short-distance detectorsYes, split one detector channel into 8 short channels
Included AccessoriesNIRScaps, System carrying case, strain-relief arms, Trigger cable, Instrument PC
Optional AccessoriesComputer cart, Active Trigger Splitter, fMRI/TMS compatibility, flat and blunt tipped optode, Animal fNIRS Module, BCI/neurofeedback – fully compatible with Turbo Satori software
Temperature Range10 – 40 C (operating), -15 – 70 C (storage)
Humidity20% – 80% Relative, Non-condensing
Power Supply Voltage and Consumption90 to 250 VAC (50Hz – 60Hz); 175W Max
portable or notNo
Dimensions (WxHxL), Net WeightStandard: 260mm x 170mm x 330mm, 10kg; Extended: 340mm x 170mm x 370mm, 16kg

NIRSport 2

Product NameNIRSport 2
URLhttps://nirx.net/nirsport
source numberfrom 8-64 (8-source increments)
source typesLED
detector numbersfrom 8-80 (8-detector increments)
detector typesSilicon Photodiode (active or fiber optic) or Avalanche Photodiode (fiber optic)
Detector Dynamic Range & Sensitivity 80 dBopt measurement dynamic range
Optode typeSingle-tip, or specialized Dual-tip optodes (faster set-up time and better contact to skin), Blunt-Tip (infant and child applications, better comfort), or APDs for extra sensitivity
Maximum number of topographic channels45-55 channels, depends on optode layout used
Maximum number of tomographic channels256
3D Depth-discriminationYes*
Operation modeUSB, Wi-Fi, Stand-alone direct-to-device recording mode: no computer, tablet, or smartphone required
Hyperscanning ConfigurationWireless hyperscanning (up to 10 or more subjects) including singe device hyperscanning
Included Data Acquisition SoftwareAurora fNIRS
Data FormatRaw light intensity: tab-delimited (may be analyzed in any environment)
Data Output OptionsNIRx format: .wl1, .wl2, etc.; *.NIRS format; *.SNIRF format
Event Synchronization Wireless (LSL; Lab Streaming Layer), Cable (8-bit TTL Input)
Headgear NIRScaps: freely-configurable, measures whole head, fits all age ranges, multi-modal
BCI/Neurofeedback Optional module for Aurora fNIRS
wavelength760nm & 850nm
sampling rateUp to 240 Hz
Multi-modal integrationBuilt-in: EEG, tDCS/TES, eye-tracking, motion-tracking
Requiring module: fMRI, MEG, TMS
Spectroscopic TechniqueContinuous Wave, Single Phase
portable or notYes
Dimensions (WxHxL), Net Weight162 mm x 125 mm x 60 mm; 970g
Multi-distance/Short-distance detectors Yes, split one detector channel into 8 short channels
Included Accessories NIRScaps, System carrying case, Trigger cable
Optional Accessories Recording/Analysis Computers, Computer cart, Active Trigger Splitter, fMRI/TMS/MEG Compatibility, Flat and Blunt-tipped Probes, Animal NIRS Module, BCI/neurofeedback – fully compatible with Turbo Satori https://www.nirx.net/turbo-satori
Temperature Range 10 – 40C (operating), -15 – 70C (storage)
Humidity 20% – 80% Relative, Non-condensing
Power Supply Voltage and Consumption 90 to 250 VAC (50Hz – 60Hz); 175W Max
Acceleration sensor specifications 9 axes (3 linear acceleration + 3 gyroscope axes + 3 magnetometric measurements) 100 Hz sampling rate, low-pass filtered with a 3dB cutoff at 40 Hz. Temperature range: -40 – + 60 °C (sampling rate accuracy over temperature range: +- 1%). Range: +- 2 g. Resolution/sensitivity: 16 bit (i.e. 0.061 milli-g). Noise: less than 1.3 milli-g
Gyroscope specificationsrange: +- 2000 °/sec * zero-rate offset: +- 3 °/sec * Resolution/sensitivity: 16 bit (0.061 °/s) * noise: less than 0.08/sec

OBELAB

Company Logo
NameOBELAB
URLhttp://obelab.com/index.php
ContactAddress: 12F Vision Tower,312, Teheran-ro Gangnam-gu, Seoul, 06211, Korea
Tel:+82-2-6407-3889
Email: [email protected]
DescriptionOBELAB was founded in 2013 as a university (KAIST) lab spin-off. We launched our first commercial product, NIRSIT, in August 2016.

We are marketing our product globally and collaborating with a number of research and/or clinical institutions worldwide. We envision to become one of the world’s most innovative technology company in the field of brain imaging.

NIRSIT

Product NameNIRSIT
URLhttp://obelab.com/product/product_nirsit.php
source number24
source typeslaser
detector number32
detector types
max # of channels (list of options)up to 204 channels
wavelength780nm & 850nm
sampling rate8.138Hz
Multi-modal integrationfMRI、EEG、TMS
Spectroscopic TechniqueContinuous-wave
portable or notyes
Dimensions (WxHxL), Net Weight450g

NIRSIT ON

Product NameNIRSIT ON
URLhttps://www.obelab.com/product/product_nirsit-on.php
source number2
source typesfour wavelength LED or laser sources
detector number4
detector types/
max # of channels (list of options)8 channels
wavelength780nm & 850nm
sampling rate32Hz
Multi-modal integrationfMRI、EEG、TMS
Spectroscopic TechniqueContinuous-wave
portable or notno
Dimensions (WxHxL), Net Weightmain module: 94*94*11.2mm, 71g
link module: 60.2*94*11mm, 192g

Rogue Research

Company Logo
NameRogue Research
URLhttps://www.shimadzu.com/an/index.html
Contact300-6666 rue Saint-Urbain, Montreal, Quebec, H2S 3H1, Canada Phone: +1-514-284-3888, toll free (Canada & USA): 1-866-984-3888
Fax: +1-514-284-6750
Email: [email protected]
DescriptionRogue Research was created in 2000 to develop new tools to aid in neuroscience research. Every project we undertake is done because we believe we can provide something unique and ultimately useful to help you conduct your research.

Over the years, we have built up a multidisciplinary team of enthusiastic engineers, neuroscientists and technicians to undertake complex challenges from the high-level design to the detailed implementation of each aspect of the product.We count hundreds of laboratories around the world as our customers and our goal is to use our expertise and energy to give you the tools you need to do your best work. Note that Brainsight products are intended for scientific research and is not intended for medical applications.

Brainsight NIRS

Product NameBrainsight NIRS
URLhttps://www.rogue-research.com/nirs/
source number4-16 (could do 24)
source typeslaser
detector number8-32
detector typesSi APD (cortical detectors); Si photodiode (proximity detectors)
max # of channels (list of options)72
wavelength705nm & 830nm
sampling rateUp to 50 Hz
Multi-modal integration/
Spectroscopic TechniqueContinuous-wave
portable or notno
Dimensions (WxHxL), Net Weight/

Seenel

Company Logo
NameSeenel
URLhttps://seenel-imaging.com/
ContactImmeuble Terralia
60 rue de la Vallée
80000 Amiens – FRANCE
T: +33(0) 360 284 051
DescriptionResearch-based from INSERM lab, Seenel Imaging commercializes Medelopt®, a breakthrough neuroimaging device.
Developed by world-renowned clinical neuroscience and signal processing researchers, along with a well-rounded team of electronic on boarding and medical devices experts, Medelopt® is the perfect multi-modal functional brain exploration platform for neuroscientific researchers.

Medelopt

Product NameMedelopt
URLhttps://www.gowerlabs.co.uk/nts-main
source number16
source typesLED
detector number32 (combine with 8 EEG electrodes)
detector typeselectropods
max # of channels (list of options)up to 512 channels
wavelength780nm & 850nm
Multi-modal integrationEEG
Spectroscopic TechniqueContinuous-wave
portable or notyes
Dimensions (WxHxL), Net Weight/

SHIMADZU

Company Logo
NameShimadzu
URLhttps://www.shimadzu.com/an/index.html
ContactShimadzu Europa GmbH
Albert-Hahn-Str. 6-10
D-47269 Duisburg
Tel.: +49 (0) 203 – 7687 0
Fax: +49 (0) 203 – 7666 25
Email: [email protected]
DescriptionShimadzu Corporation is a Japanese public KK company, manufacturing precision instruments, measuring instruments and medical equipment, based in Kyoto, Japan. It was established in 1875. The American arm of the company, Shimadzu Scientific Instruments, was founded in 1975.

Shimadzu is the world’s only producer of a “Direct-Conversion” Flat Panel Detector for Cardiac, Angiography and General Radiography examinations. The company had revenue of ¥264.048 billion yen ($2.8 billion USD) in FY 2012, with 10,395 employees as of March 31, 2013.

LABNIRS

Product NameLABNIRS
URLhttps://www.biopac.com/application/fnir-functional-near-infrared-optical-brain-imaging/#tabs
source typesLaser
detector typesPhotomultiplier tube
max # of channels (list of options)up to 142 channels (Select between 4 and 40 sets in increments of 4 sets to suit your research application)
wavelength780nm, 805nm, 830nm
sampling rateCaptures rapid cerebral blood flow signals in just 6 ms
Multi-modal integrationEEG、fMRI、TMS
Spectroscopic TechniqueContinuous-wave
portable or notno
Dimensions (WxHxL), Net Weight610*750*1090mm, 230kg

LIGHTNIRS

Product NameLIGHTNIRS
URLhttps://www.ssi.shimadzu.com/products/imaging/lightnirs.html
source typesLaser
detector typesAvalanche photodiode
max # of channels (list of options)2*8(22ch); 2*4(10ch)*2;
wavelength780nm, 805nm, 830nm
Multi-modal integration/
Spectroscopic TechniqueContinuous-wave
portable or notyes
Dimensions (WxHxL), Net WeightW253 × D222 × H68mm (not including protrusions); About 1600g (not including computer, batteries, and probes)

Soterix medical

Company Logo
NameSoterix medical
URLhttps://soterixmedical.com/
ContactAddress: 237 W 35 ST, NEW YORK, NY 10001
Email: [email protected]
[email protected]
Fax: 212-315-3232
DescriptionAdvanced clinical and research centers choose Soterix Medical devices and accessories where the highest standards in performance are required. Soterix Medical products stand-out for their usability, unique features, and precision. Leveraging the most advanced scientific understanding, Soterix Medical technology is the standard for neuromodulation clinical trials and human performance testing. Soterix Medical technologies including, but not limited to, tDCS-Limited Total Energy (LTE) and High Definiton-tES (HD-tES) are protected by patents, other intellectual property rights, patents pending and/or other intellectual property rights pending.

NIRSIT

Product NameNIRSIT
URLLink
source number2
source typeslaser
detector number4
detector typesPhotodiode
max # of channels (list of options)8
sampling rate8Hz
Multi-modal integration/
Spectroscopic TechniqueContinuous-wave
portable or notyes
Dimensions (WxHxL), Net Weight/

Spectratech

Company Logo
NameSpectratech
URLhttp://www.spectratech.co.jp/
ContactAddress: 3rd Floor, Shin-Yokohama IO Bldg. 1-3-10 Shin-Yokohama, Kohoku-Ku, Yokohama-City, Kanagawa-Prefecture 222-0033 Japan
Phone: 81-45-471-4893 Fax: 81-45-471-4894
Email: [email protected]
DescriptionSpectratech, inc. was established in April of 2001 by the experts being concentrated from each field of medical equipment, optics, high frequency, and image data processing for developing the technology that should be a core of the next generation’s applied electronic medical equipments.

OEG-17H

Product NameOEG-17H
URLhttps://www.spectratech.co.jp/En/productEn.html
source number6
source typesLED
detector number6
detector typesAvalanche photo diode
max # of channels (list of options)14、16 or 17 channels (Expandable to 34、37、51 and 57 channels)
wavelength770nm & 840nm
sampling rateFine Mod: 0.76Hz (Sampling interval: 0.65535 sec)
Fast Mode: 6.10Hz (Sampling interval: 0.08192 sec)
Multi-modal integration/
Spectroscopic TechniqueContinuous-wave
portable or notyes
Dimensions (WxHxL), Net Weight/

TechEn

Company Logo
NameTechEn
URLhttp://www.techen.com/index.html
ContactAddress: 115 Cedar Street, Milford, MA 01757, United States
Phone: (508) 478-0042
Fax: (508) 634-3208
DescriptionEstablished in 1983, TechEn has extensive experience across a number of electrical and electronic engineering industries. Since opening our doors, we have completed over 400 engineering projects in all major industries. We have developed electronic components for more than 150 clients throughout North America, Europe and the Pacific Rim.

TechEn worked with Massachusetts General Hospital and Harvard Medical School in the electronic component design and development of a novel, noninvasive optical brain imaging system for the MGH-Martinos Center for Biomedical Imaging. The program includes high-speed data acquisition of optical signals at up to 100 Hz. The technology developed for this sytem forms the basis of the company’s NIRS and CW products.

CW6 System

Product NameCW6 System
URLhttps://www.nirsoptix.com/CW6.html
source number32
source typeslaser
detector number32
detector types
max # of channels (list of options)
wavelength690nm & 830nm
sampling rate25 Hz
Multi-modal integration/
Spectroscopic TechniqueContinuous-wave
portable or notno
Dimensions (WxHxL), Net Weight/

心灵方舟

Company Logo
Name心灵方舟
URLhttps://www.xlfz.cn/index/index.html
Contact地址:北京市大兴区中关村科技园区大兴生物医药产业基地永旺西路26号院6号楼 邮编:102609
电话:010-62106097  传真:010-62106098
服务热线:400-693-6833
邮箱:[email protected]
Description北京心灵方舟科技发展有限公司(以下简称“心灵方舟”)成立于2000年,以神经技术、眼动技术和认知行为实验技术为专业核心,以移动互联人工智能和大数据通用技术为载体,致力于以脑保护和脑开发为核心的脑健康领域的高新技术企业。心灵方舟拥有业界优秀的研发团队和专家团队,已取得40余项软件著作权和数项专利证书,公司产品具备质量认证体系证书。

BrainScan N3001

Product NameBrainScan N3001
URLhttps://www.xlfz.cn/product/productDetail-48-198.html
source number16
source typeslaser
detector number16
max # of channels (list of options)up to 64 channels
sampling rateup to 200Hz
Multi-modal integrationfMRI、EEG、TMS
Spectroscopic TechniqueContinuous-wave
portable or notno
Dimensions (WxHxL), Net Weight/

CORTIVISION

Company Logo
NameCORTIVISION
URLhttps://www.cortivision.com/
ContactCortivision sp. z o.o.
Aleja Warszawska 47
20-803 Lublin
Poland
DescriptionCortivision sp. z o.o. offers a completely wireless fNIRS ecosystem, including the configurable whole-head Photon Cap and light forehead Photon Band. Both solutions are fully integrated with Virtual Reality (VR) devices. Founded in Poland around 2019, Cortivision produces noninvasive hardware and end-user software.

Cortivision makes tools for the assisted control of mechanical,electrical,and digital devices/applications and the objective measurement of subjective experiences through mind/body state interpretation.

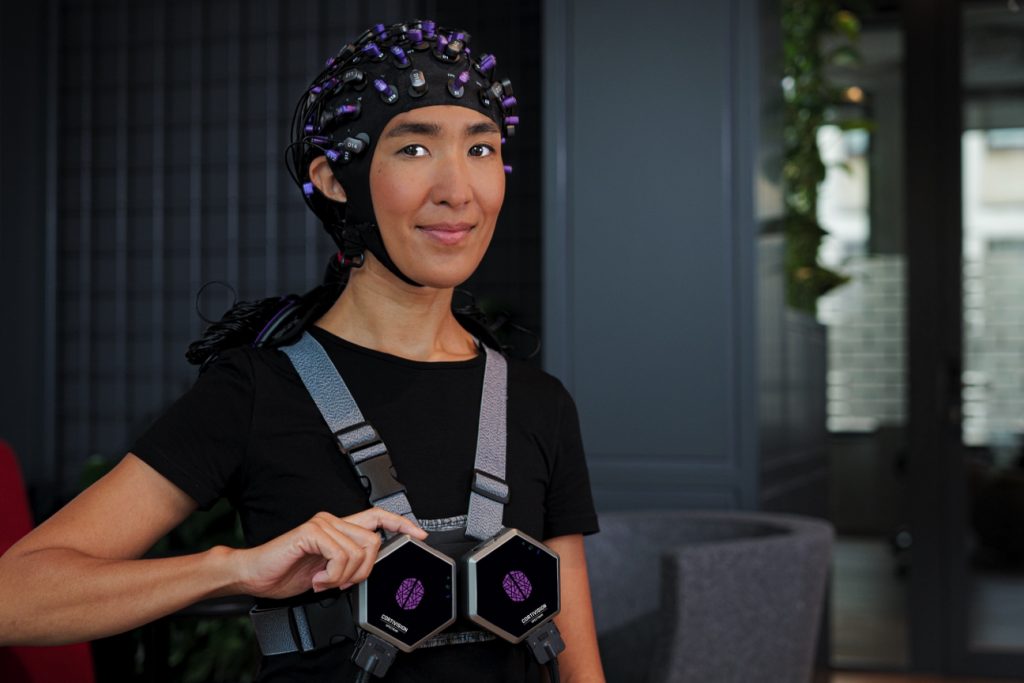

Cortivision PHOTONCAP is a wireless near-infrared spectroscope (NIRS) for functional measurement of cerebral hemodynamic response. Our device enables non-invasive monitoring of activity of selected areas of the cerebral cortex, thanks to a set of high quality emitters and detectors.

Cortivision PHOTONCAP is the first fully integrated environment combining NIRS technology with virtual reality (VR) for research, diagnostic and training applications. The use of virtual reality allows for unprecedented control of the content we provide to the subject. Therefore, PHOTONCAP is an excellent tool for researchers and professionals in the field of UX/UI and ergonomics.

The system provides easy integration with any stimulus presentation software, as well as convenient signal export to the most popular recording formats (e. g. .snirf). Built-in IMU (inertial measurement unit) module allows for a simple reading of movement parameters during the test on the basis of accelerometer and gyroscope indications.

PHOTONCAP

Product NamePHOTONCAP
URLhttps://www.cortivision.com/products/photon/
source number16 sources
source typesLED
detector number10 detectors with an area of 7.5 mm2
max # of channels (list of options)fully user-configurable montages, up to 37 channels
wavelength760 nm & 850 nm
sampling ratevariable, up to 92 Hz
Multi-modal integrationEEG, VR; easy multi-modal and hyperscanning registration Via LSL protocol
Spectroscopic TechniqueContinuous-wave
portable or notYes
Dimensions (WxHxL), Net Weight265g

If you are a fNIRS manufacture (or distributor) and you want your products to be listed here, please leave a message under this article.

If you are considering to purchase an fNIRS equipment, you may contact us as well and we can connect you with the manufactures and local distributors.

All images and text materials are from public domains.



写作助手,把中式英语变成专业英文


Want to receive new post notification? 有新文章通知我

第五十七期fNIRS Journal Club通知2024/11/02, 10am 王欣悦博士

肢体语言——例如人际距离、眼神、手势等,如何影响我们的交流,是一个有趣的谜题。它们是优雅而神秘的代码,无本可依、无人知晓,却又无人不懂。来自南京师范大学的王欣悦博士将分享如何通过fNIRS超扫描技术,
Wanling Zhu
16 sec read

第五十六期fNIRS Journal Club视频 李开云副教授

Youtube: https://youtu.be/bKanFfeV5Ao 优酷:https://v.youku.com/v_show/id_XNjQzNDUzMjU4OA==.html 孤独症谱系障
Wanling Zhu
27 sec read

第五十六期fNIRS Journal Club通知2024/09/28, 10am 李开云副教授

孤独症谱系障碍(Autism Spectrum Disorder, ASD)是一种复杂的神经发育障碍,其核心特征包括社交沟通障碍、重复刻板行为和限制性兴趣。济南大学教育与心理科学学院李开云博士借助fN
Wanling Zhu
21 sec read

Leave a Reply

Your email address will not be published. Required fields are marked *
